minio snippet

minio

concept

Erasure Coding

Erasure Coding splits data into data and parity shards. For example, MinIO might use a 4:2 erasure code (should use 6 disks), meaning each object is split into 4 data shards and 2 parity shards.

In a 4:2 erasure coding setup:

4 data shards hold the actual object data.

2 parity shards are created for redundancy.

In this configuration, every object is broken into smaller pieces, with redundancy pieces (parity shards) stored to allow recovery if a disk or node fails.

server

1
2
3
4
5
6
7
8
9
10
11
12
# service file
/usr/lib/systemd/system/minio.service

# default config file
/etc/default/minio

# reload config after modify default file
sudo systemctl stop minio
sudo systemctl daemon-reload

# 如果更改MINIO_VOLUMES信息，并且需要用到之前的一些盘符，需要清理干净相关目录的文件（包括隐藏文件 .minio.sys）
需要目录里清理遗留的所有文件 （rm -rf ./* 命令不会清理隐藏文件）

  • minio.service

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    [Unit]
    Description=MinIO
    Documentation=https://docs.min.io
    Wants=network-online.target
    After=network-online.target
    AssertFileIsExecutable=/usr/local/bin/minio

    [Service]
    Type=notify

    WorkingDirectory=/usr/local

    User=dingofs
    Group=dingofs
    ProtectProc=invisible

    EnvironmentFile=-/etc/default/minio
    ExecStart=/usr/local/bin/minio server $MINIO_OPTS $MINIO_VOLUMES

    # Let systemd restart this service always
    Restart=always

    # Specifies the maximum file descriptor number that can be opened by this process
    LimitNOFILE=1048576

    # Turn-off memory accounting by systemd, which is buggy.
    MemoryAccounting=no

    # Specifies the maximum number of threads this process can create
    TasksMax=infinity

    # Disable timeout logic and wait until process is stopped
    TimeoutSec=infinity

    SendSIGKILL=no

    [Install]
    WantedBy=multi-user.target

  • /etc/default/minio

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    MINIO_VOLUMES="http://minio{1...3}.dev.net:19000/mnt/disk2/minio"
    #MINIO_VOLUMES="http://minio{1...3}.dev.net:19000/mnt/disk{0...1}/minio"
    #MINIO_VOLUMES="http://minio1.dev.net:19000/mnt/disk1/minio http://minio2.dev.net:19000/mnt/disk1/minio http://minio3.dev.net:19000/mnt/disk1/minio"
    #MINIO_VOLUMES="http://minio2.dev.net:19000/mnt/minio http://minio3.dev.net:19000/mnt/minio"

    # Set all MinIO server options
    #
    # The following explicitly sets the MinIO Console listen address to
    # port 9001 on all network interfaces. The default behavior is dynamic
    # port selection.

    #MINIO_OPTS="--console-address :9001"
    MINIO_OPTS=' --console-address=":19001" --address=":19000" '

    # Set the root username. This user has unrestricted permissions to
    # perform S3 and administrative API operations on any resource in the
    # deployment.
    #
    # Defer to your organizations requirements for superadmin user name.

    MINIO_ROOT_USER=minioadmin

    # Set the root password
    #
    # Use a long, random, unique string that meets your organizations
    # requirements for passwords.

    MINIO_ROOT_PASSWORD=minioadmin

client

install

1
2
3
4
5
6
7
8
9
curl https://dl.min.io/client/mc/release/linux-amd64/mc \
  --create-dirs \
  -o $HOME/minio-binaries/mc

chmod +x $HOME/minio-binaries/mc

cp $HOME/minio-binaries/mc /usr/bin/

mc alias set myminio http://minio1.dev.net:19000 {ak} {sk}

command

  • log
1
mc admin logs myminio
  • development
1
2
3
4
5
6
7
8
9
10
11
12
# add development
mc alias set myminio {endpoint_address} {ak} {sk}
# e.g. mc alias set myminio http://minio1.dev.net:19000 1111111 22222222

# ls alias
mc alias list

# overview info
mc admin info myminio

# check config
mc admin config get myminio

  • bucket

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    # create bucket
    mc mb <ALIAS>/<BUCKET>

    # list bucket
    mc ls <ALIAS>

    # check bucket
    mc ls <ALIAS>/<BUCKET>

    # count total object/file num
    mc ls --summarize --recursive gateway-minio

    # check object
    mc cat <ALIAS>/<BUCKET>/<OBJECT>

    # delete object
    mc rm <ALIAS>/<BUCKET>/<OBJECT>

    # delete according specify time
    mc find <alias/bucket-name> --older-than <time> --exec "mc rm {}"
    # e.g. mc find myminio/mybucket --older-than 30d --exec "mc rm {}"

    # delete all data
    mc rm --recursive --force <ALIAS>/<BUCKET>

    # force delete bucket
    mc rb --force <ALIAS>/<BUCKET>  # must delete bucket's object file first

  • heal

1
2
# Use MinIO’s heal command to ensure the data and metadata are consistent:
mc admin heal -r <ALIAS>/
  • erasure code
1
2
3
4
5
6
# set erasure code
mc admin config set myminio storage_class standard=EC:0
# should restart minio.service, and 'systemctl status minio' will print 'WARN: The standard parity is set to 0. This can lead to data loss'

# check storage_class
mc admin config get myminio storage_class

TLS

172.20.61.102 minio1.dev.net
172.20.61.103 minio2.dev.net
172.20.61.105 minio3.dev.net

/etc/default/minio:
MINIO_VOLUMES=”https://minio{1...3}.dev.net:19000/mnt/minio{1...2}"
MINIO_OPTS=’ –console-address=”:19001” –address=”:19000” ‘

By default, the MinIO server looks for the TLS keys and certificates for each node in the following directory: ${HOME}/.minio/certs (该证书存放各自机器的private.key 和 public.crt， 每台机器的 private.key 和 public.crt都不一样)

If using Certificates signed by a non-global or non-public Certificate Authority, or if using a global CA that requires the use of intermediate certificates, you must provide those CAs to the MinIO Server /root/.minio/certs/CAs (用来存放私有的证书ca.crt，该证书用于生成机器的private.key 和 public.crt， 集群的每台机器存放的ca.crt应该保持一致)

  1. Generate CA and Certificates generate_certificate.sh
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
# Generate CA private key
openssl genrsa -out ca.key 4096

# Create CA certificate
openssl req -x509 -new -nodes -key ca.key -sha256 -days 3650 \
    -out ca.crt \
    -subj "/C=US/ST=YourState/L=YourCity/O=YourOrg/OU=YourUnit/CN=MinioCA"

# Generate server private keys for each node
for node in minio1 minio2 minio3; do
    openssl genrsa -out ${node}.key 2048

    # Create server certificate signing request (CSR)
    openssl req -new -key ${node}.key -out ${node}.csr \
        -subj "/C=US/ST=YourState/L=YourCity/O=YourOrg/OU=YourUnit/CN=${node}.dev.net"

    # Create server certificate configuration
    cat > ${node}.ext << EOF
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
subjectAltName = @alt_names

[alt_names]
DNS.1 = ${node}.dev.net
IP.1 = 172.20.61.$(grep ${node} /etc/hosts | awk '{print $1}' | cut -d. -f4)
EOF

    # Sign server certificate with CA
    openssl x509 -req -in ${node}.csr -CA ca.crt -CAkey ca.key \
        -CAcreateserial -out ${node}.crt -days 3650 \
        -sha256 -extfile ${node}.ext
done

  1. Distribute Certificates copy_certificate.sh

    1
    2
    3
    4
    5
    6
    7
    8
    9
    # Create certificate directories
    for node in minio1 minio2 minio3; do
        # Copy node-specific certificate and key
        scp ${node}.crt root@${node}.dev.net:/root/.minio/certs/public.crt
        scp ${node}.key root@${node}.dev.net:/root/.minio/certs/private.key

        # Copy CA certificate to trusted CAs
        scp ca.crt root@${node}.dev.net:/root/.minio/certs/CAs/
    done

  2. Update MinIO Configuration
    Modify /etc/default/minio on each node to ensure proper TLS configuration:

    1
    2
    # Update MINIO_VOLUMES to use https
    MINIO_VOLUMES="https://minio{1...3}.dev.net:19000/mnt/minio{1...2}"

  3. Set Correct Permissions (optional)

    1
    2
    3
    4
    5
    6
    7
    8
    for node in minio1 minio2 minio3; do
        ssh root@${node}.dev.net "
        chown -R minio:minio /root/.minio/certs
        chmod 700 /root/.minio/certs
        chmod 600 /root/.minio/certs/private.key
        chmod 644 /root/.minio/certs/public.crt /root/.minio/certs/CAs/*
        "
    done

  4. Restart MinIO Cluster

    1
    2
    systemctl daemon-reload
    systemctl restart minio

  5. Trust certificate globally

每台机器均需要操作一遍（这样可以保证mc设置alias成功）

1
2
3
sudo cp ca.crt /etc/pki/ca-trust/source/anchors/
sudo update-ca-trust extract
sudo openssl verify -CAfile /etc/pki/tls/certs/ca-bundle.crt /etc/pki/ca-trust/source/anchors/ca.crt
  1. Verification
1
2
3
4
5
6
7
8
9
10
11
# Check TLS configuration on each node
for node in minio1 minio2 minio3; do
    echo "Checking ${node}:"
    ssh root@${node}.dev.net "
    openssl x509 -in /root/.minio/certs/public.crt -text -noout
    echo '---'
    netstat -tuln | grep 19000
    echo '---'
    systemctl status minio
    "
done

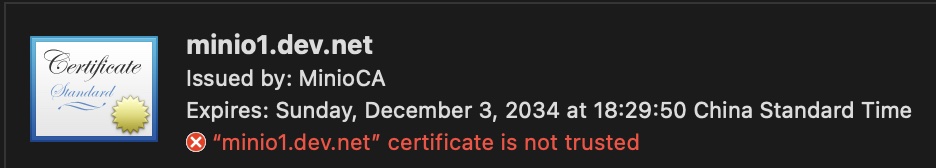

browser check
